EMI/EMC shielding + precision enclosures

One partner for EMI/EMC compliant

shielding and precision engineered enclosures.

SSD Polymers designs and manufactures conductive gaskets, shielding components and precision metal enclosures — so the groove, the gasket and the box are engineered together, by one accountable team.

Solve Our EMI Challenge See the integrated approach ↓

Shielding · 999F

120 dB

at 10 GHz plane wave · ≤0.002 Ω·cm · −65 to +160 °C

Featured product

Pure Silver Conductive Elastomers

40+

years of indigenous EMI shielding development

3

CEMILAC type approvals for conductive elastomer materials

MIL

DTL-83528 conformance tested at Government and Defence labs

ISO

9001:2015 and 14001:2015 certified

Start where you are

Design engineer

Compare materials by shielding performance →

Procurement

One supplier, one PO, documented approvals →

Programme lead

Proven on radar, airborne and missile programmes →

01

Our core strength

Integrated EMI/EMC shielding and precision enclosure manufacturing.

Most programmes buy gaskets from one supplier and enclosures from another — then discover the problems at the seam. With SSD Polymers, one engineering team owns both, and you have a single point of contact from drawing to delivery.

The usual way · two suppliers

Enclosure vendor

Your team

Gasket supplier

×

Groove tolerances and gasket compression specified separately

×

Surface finish chosen without the gasket in mind — leakage at the seam

×

Two vendors to qualify, two POs, two schedules — and shared blame

With SSD Polymers · one point of contact

SSD Polymers · enclosure + shielding

Your team

✓

Groove and gasket designed together, for the right compression

✓

Conductive finishes such as chromating matched to the gasket

✓

One supplier to qualify, one PO, one schedule, one accountable team

EMI/EMC shielding

Conductive elastomers, wire mesh gaskets, honeycomb vents, shielding windows, tapes, paint, putty and adhesive.

Precision metal enclosures

CNC machining and turning, laser cutting, CNC press brakes, TIG and laser welding, chromating, painting and laser marking.

What it means for you

Fewer suppliers to qualify and manage

Fewer failures at the enclosure seam

Shorter development loops — tooling is in-house

Single accountability for shielding performance

Discuss an integrated requirement

Corporate film · Inside SSD Polymers

02

Why SSD Polymers?

We built the capability to make it in India.

01

Integrated shielding and enclosures

One point of contact for both.

02

Indigenous R&D

No foreign collaboration or technology transfer.

03

CEMILAC type-approved materials

For military airborne platforms.

04

Made to your drawing

Moulded profiles, no sheet wastage.

05

Machines built in-house

Special-purpose equipment and a full machine shop.

06

Validation-led, no minimum order

MIL-standard testing; five units or five thousand.

03

Product portfolio

Every product family, developed in-house.

Download catalogue — no form

Conductive elastomers

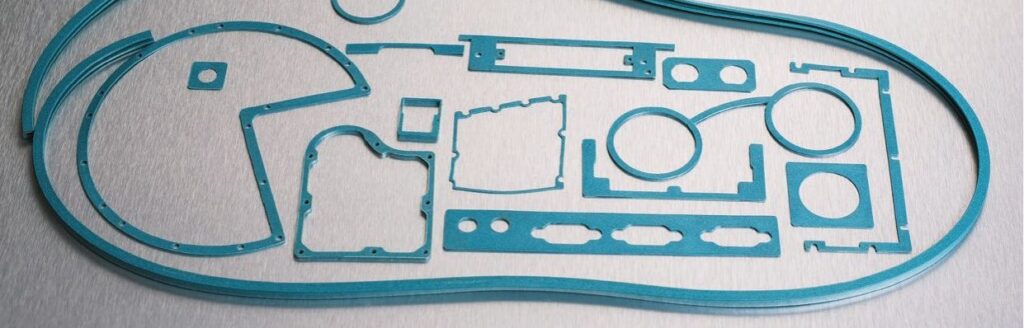

Pure Silver Conductive Elastomers

Highest shielding effectiveness; fluorosilicone grades for jet-fuel resistance.

Request a datasheet →

Conductive elastomers

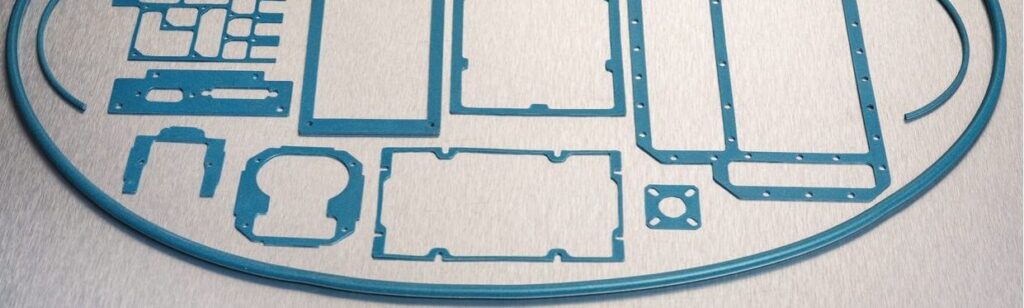

Silver Plated Conductive Elastomers

Ag-Al and Ag-Cu fillers for moderate-to-high shielding at lower cost.

Request a datasheet →

Conductive elastomers

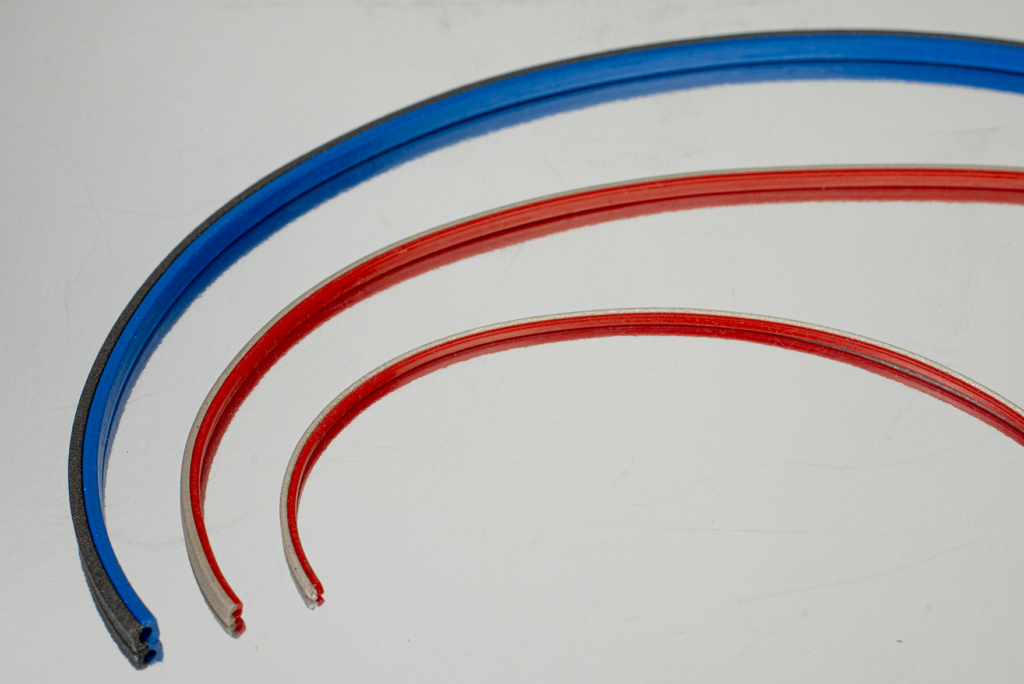

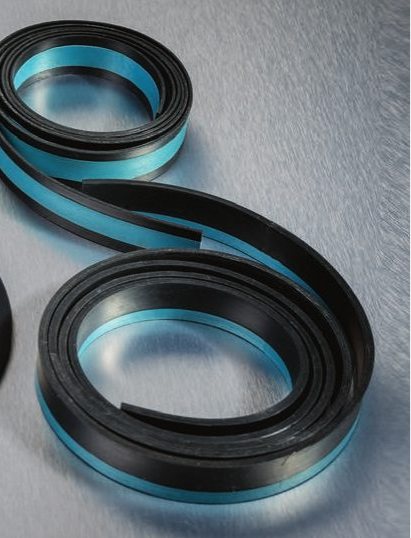

Composite Conductive Elastomers

Shielding plus environmental sealing for marine and corrosive environments.

Request a datasheet →

Wire mesh

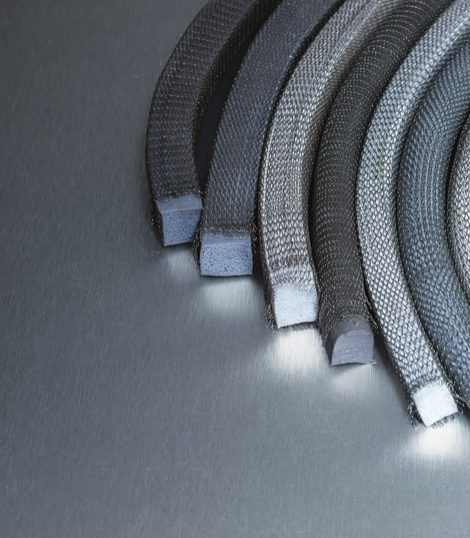

Wire Mesh over Elastomer Core Gaskets

Resilient knitted wire over NBR, EPDM, neoprene or silicone cores.

Request a datasheet →

Wire mesh

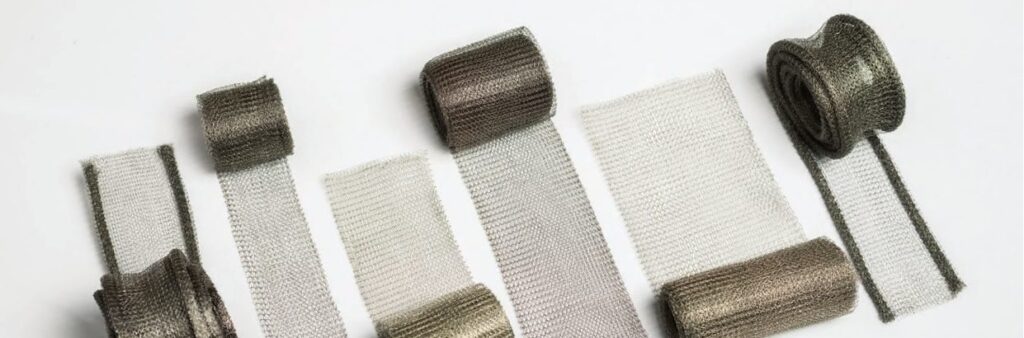

Knitted Wire Mesh Tapes & Gaskets

Shielding and grounding for seams, cables and harnesses.

Request a datasheet →

Wire mesh

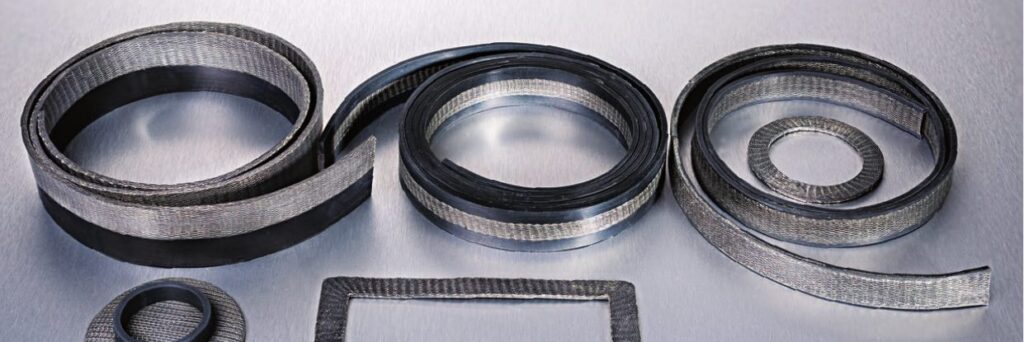

Wire Knit Embedded Gaskets

Wire knit in silicone for high closure-pressure applications.

Request a datasheet →

Wire mesh

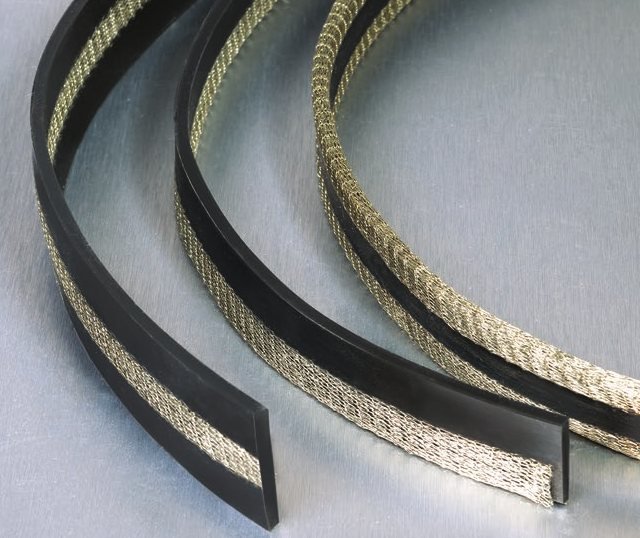

Dual Type Wire Mesh Gaskets

Knitted wire combined with elastomer for doors, lids and cabins.

Request a datasheet →

Vents & windows

Honeycomb Airvents

Shielding with low airflow resistance; S.S. variant for EMP.

Request a datasheet →

Vents & windows

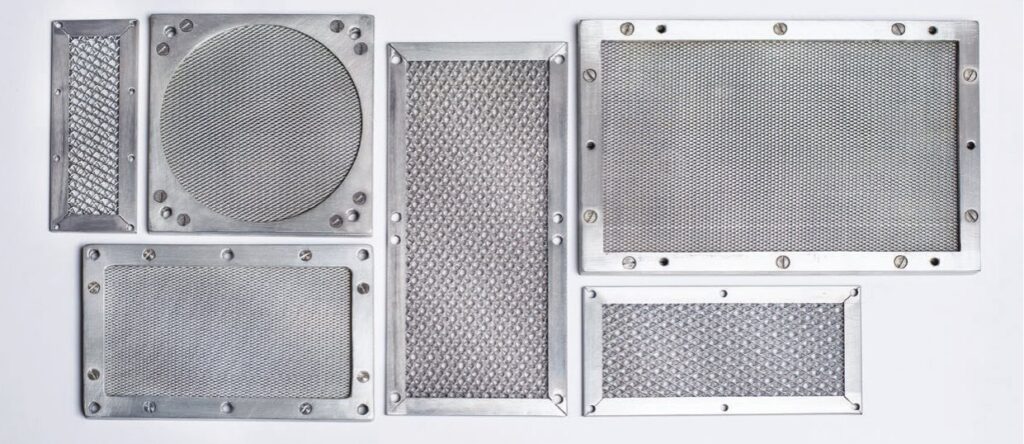

Slim Type Air Vents

Low-profile, cost-effective vents for space-constrained designs.

Request a datasheet →

Vents & windows

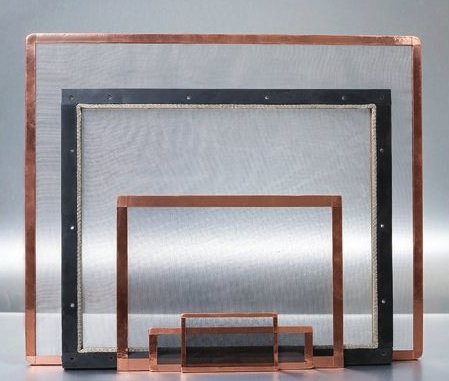

EMI Shielding Windows

Wire screen laminated in toughened glass or polycarbonate for displays.

Request a datasheet →

Tapes, fabrics & compounds

Conductive Fabric Gaskets

Low closure force for enclosures, cabinets and shielded-room doors.

Request a datasheet →

Tapes, fabrics & compounds

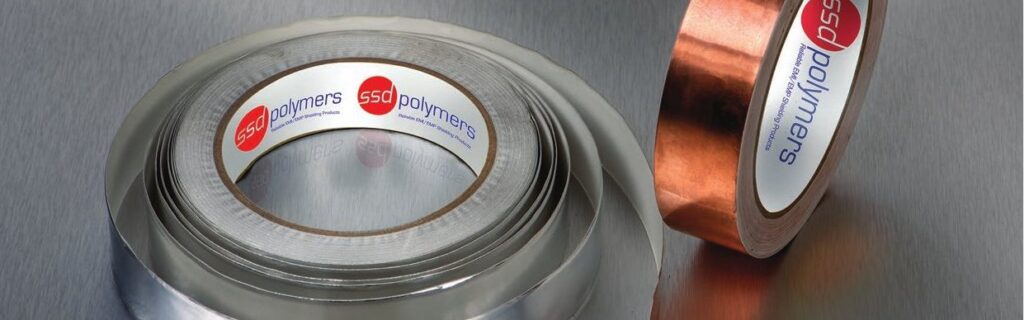

Conductive Foil Tapes

Cu / Al foil with conductive pressure-sensitive adhesive.

Request a datasheet →

Tapes, fabrics & compounds

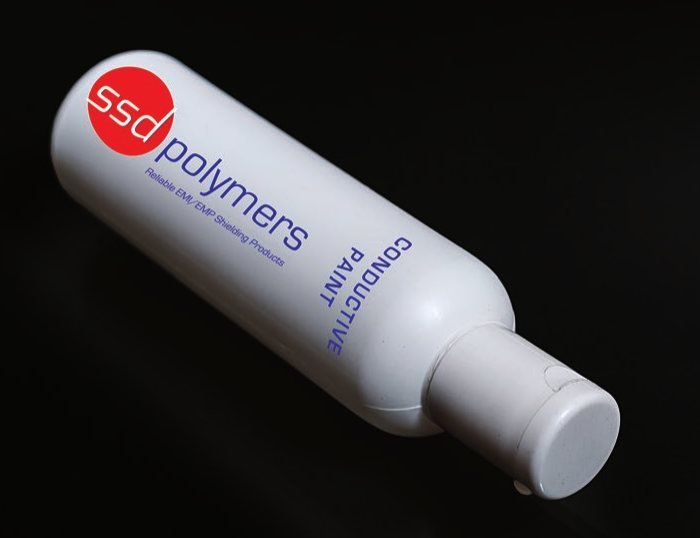

Conductive Paint

Silver-filled, one-component paint for plastic surfaces and enclosures.

Request a datasheet →

Tapes, fabrics & compounds

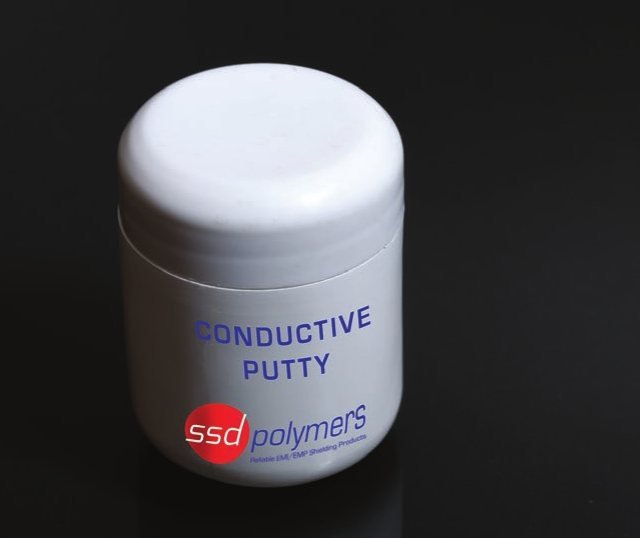

Conductive Putty

Pure-silver epoxy putty to fill fine gaps and joints.

Request a datasheet →

Tapes, fabrics & compounds

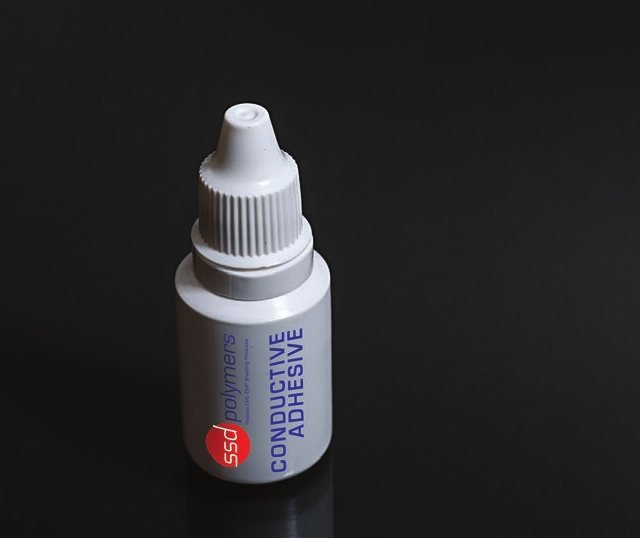

Conductive Adhesive

Pure-silver filled silicone for mounting and joining elastomers.

Request a datasheet →

Precision enclosures

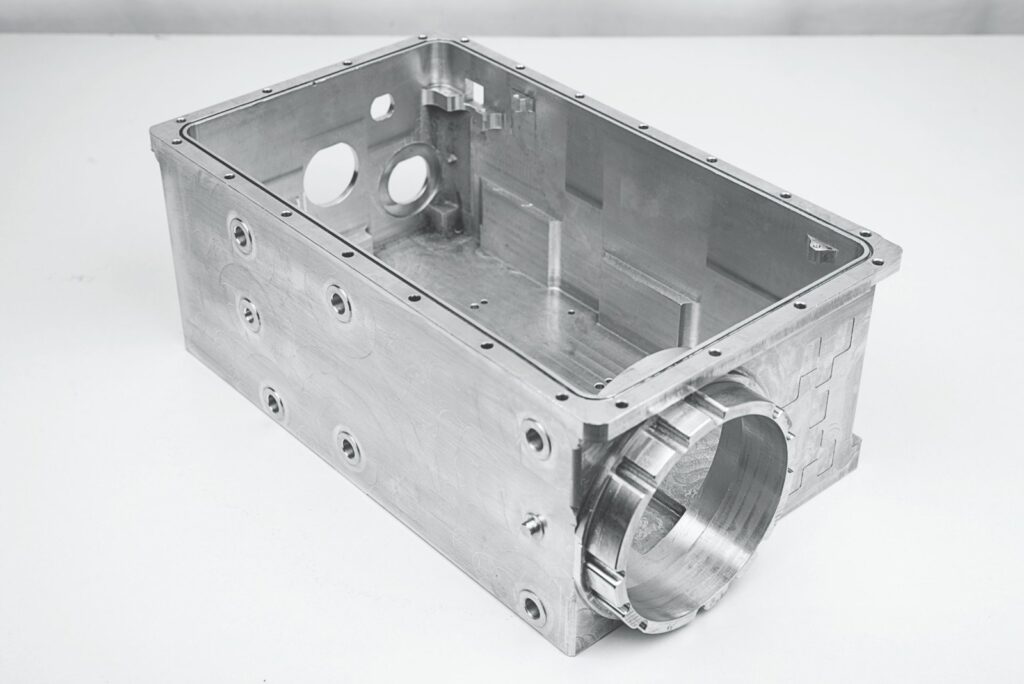

Precision Metal Enclosures

CNC-machined and fabricated enclosures, with gasket grooves and finishes engineered for the shielding interface.

Discuss an enclosure →

India’s first indigenous conductive gaskets.

Developed in the late 1980s, when there were no machines to buy and almost no one in India knew the product. So we designed the process, built the machines and created the test methods ourselves.

04

Material performance

Compare shielding performance, grade by grade.

Compare the most-requested conductive elastomer grades, then see every grade in the full table. Values are from SSDP datasheets and are indicative — real performance depends on how the gasket is integrated.

70

60

70

200 kHz · H-field

120

115

120

100 MHz · E-field

120

100

120

10 GHz · Plane wave

999

Ag · Silicone · MIL Type E · ≤ 0.002 Ω·cm · −55 to +160 °C

777

Ag-Al · Silicone · MIL Type B · ≤ 0.008 Ω·cm · −55 to +160 °C

888

Ag-Cu · Silicone · MIL Type A · ≤ 0.004 Ω·cm · −55 to +125 °C

Compare all grades in the full table

Grade

Filler · elastomer · MIL equiv.

Max resistivity · temperature

Shielding dB (200 kHz / 100 MHz / 10 GHz)

999

Ag · Silicone · Type E

0.002 Ω·cm · −55 to +160 °C

70 / 120 / 120 dB

999A

Ag · Silicone · Type J

0.01 Ω·cm · −55 to +160 °C

60 / 100 / 80 dB

999B

Ag · Silicone

0.005 Ω·cm · −55 to +160 °C

70 / 110 / 110 dB

999F

Ag · Fluorosilicone · Type F

0.002 Ω·cm · −65 to +160 °C

70 / 120 / 120 dB

777

Ag-Al · Silicone · Type B

0.008 Ω·cm · −55 to +160 °C

60 / 115 / 100 dB

777F

Ag-Al · Fluorosilicone · Type D

0.012 Ω·cm · −55 to +160 °C

55 / 110 / 90 dB

888

Ag-Cu · Silicone · Type A

0.004 Ω·cm · −55 to +125 °C

70 / 120 / 120 dB

888A

Ag-Cu · Silicone · Type K

0.005 Ω·cm · −45 to +125 °C

70 / 120 / 120 dB

888F

Ag-Cu · Fluorosilicone · Type C

0.01 Ω·cm · −55 to +125 °C

70 / 120 / 110 dB

Shielding effectiveness in dB, from SSDP Product Catalogue V7. Bars drawn to scale from 0 dB.

Ask which grade fits your application →

05

How we work

From your drawing to a qualified assembly.

A part is finished when it has been tested and documented for your platform — not when it leaves the mould. Bring us in at the design stage and the solution is usually simpler and cheaper.

Start at the design stage

01

Design together

Shielding analysis, material selection, and the enclosure groove and gasket profile designed as one interface.

Output · interface drawing and material recommendation

02

Tool & prototype

Moulds, fixtures and special-purpose machines made in our own machine shop, so iterations take days rather than vendor cycles.

Output · prototype gaskets and enclosure

03

Manufacture

Moulding, CNC machining, sheet-metal fabrication, welding and surface treatment under one roof, with the fit checked as an assembly.

Output · production parts, one schedule

04

Test & qualify

Inspection to MIL standards in-house and at NABL-accredited laboratories, with documentation and support through your qualification.

Output · test reports for your qualification file

06

Industries

Built for platforms where failure isn’t an option.

From high-altitude posts to desert ranges and the coast — each grade is specified for its own temperature range and environment.

Defence electronics & radar

Gaskets, bellows, vents and windows for radar, shelters and EMI-hardened generators.

→

Military aerospace

CEMILAC type-approved materials for airborne platforms, helicopters and airborne radar.

→

Missile & strategic systems

Qualified shielding gaskets in bulk supply for strategic programmes.

→

Naval & marine

Composite gaskets that shield and seal in corrosive, saline environments.

→

Medical electronics

Shielding for neural-sensing and health-monitoring devices.

→

Railways + EV emerging

Shielding and environmental sealing for railway electronics; early work in electric vehicles.

→

07

Qualification & assurance

The only Indian company with CEMILAC type approval for conductive elastomer EMI gaskets.

Type approvals apply to the specific materials named. Full-resolution certificates available on request.

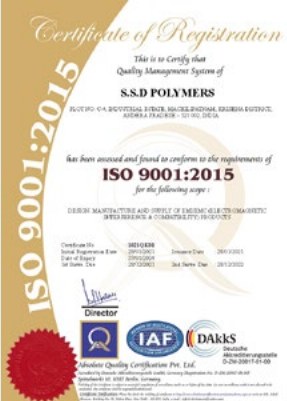

Management system

ISO 9001:2015 Quality Management System

Quality management system certification.

Management system

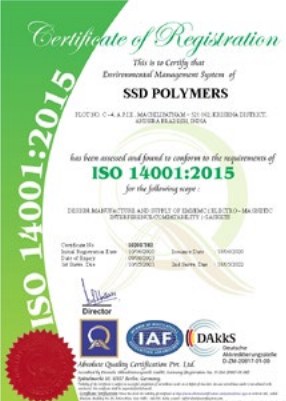

ISO 14001:2015 Environmental Management System

Environmental management system certification.

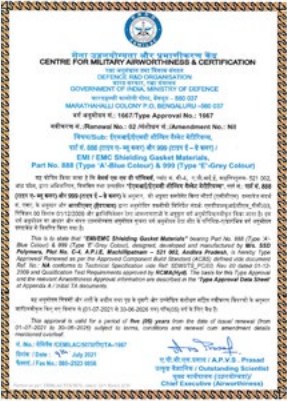

CEMILAC type approval

888 (Type A) & 999 (Type E) EMI/EMC shielding gasket materials

Material-specific type approval.

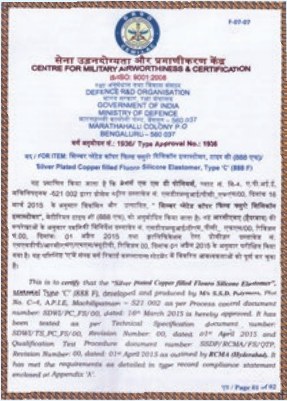

CEMILAC type approval

888 F — silver-plated copper filled fluorosilicone, Type C

Material-specific type approval.

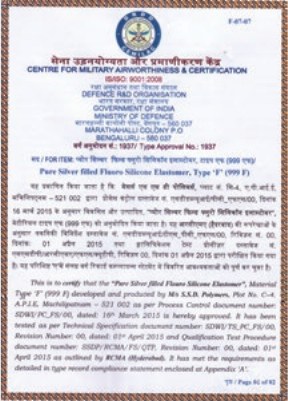

CEMILAC type approval

999 F — pure silver filled fluorosilicone, Type F

Material-specific type approval.

2010

SEMCE(I) Industry Award

Society of EMC Engineers (India)

SIATI

Excellence in Aerospace Indigenisation

Society of Indian Aerospace Technologies & Industries

08

Case studies

Defence laboratory · indigenous radar

≈ ¼

the cost of the imported alternative — fully compliant and indigenous.

Imported shielding was prohibitively expensive for a low-cost radar programme. SSDP invested in tooling and repeated design iterations until the indigenous solution met every requirement.

Read the case study →

Airborne radar antenna

Commended

Gasket redesigned to prevent over-compression during assembly; the system deployed successfully.

Externally mounted radar gaskets

20+ yrs

Still in service, never replaced — while other system components have been.

09

Making the case internally

Answers for your approval meeting.

What you need

SSD Polymers

Typical catalogue-led supplier

Suppliers to manage

One — shielding and enclosure

Separate gasket and enclosure vendors

Fit

Engineered and moulded to your drawing

Standard sizes you design around

Order quantity

No minimum — 5 units or 5,000

Volume minimums

Prototypes

In-house tooling, iterations in days

Weeks, plus import logistics

Qualification

Test reports and support for your plan

Generic datasheet

10

Our story

Self-reliance, long before it was a slogan.

“Innovation is driven by commitment and passion, not by resources alone.”

Chandra Sekhar, Technical Director

1930

Shri P.V. Subba Rao joins Andhra Scientific Company, making precision optical and electronic instruments.

1970

A cottage industry for optical products, then rubber products for automotive and oil & gas.

Late 1980s

India’s first indigenous conductive gaskets — and the machines to make them.

Today

Integrated EMI shielding and precision enclosures from Machilipatnam.

Next

From components towards complete defence systems.

11

Start a conversation

Your Design. Our Shielding Solutions & Enclosures. Engineered for EMI/EMC Compliance.

Three short steps. An SSDP engineer replies with questions, a suggested direction and next steps.

Just want the catalogue? Download it — no form →
